Horúcovzduná stanica s mikropájkou WEP 898BD+
| Kód produktu: | 898BD+ |
| Výrobca: | Yihua |
| Dostupnos: | na objednávku |
| Vaa cena s DPH: | 126.00 EUR |
| 105.0000 EUR bez DPH |
Popis produktu

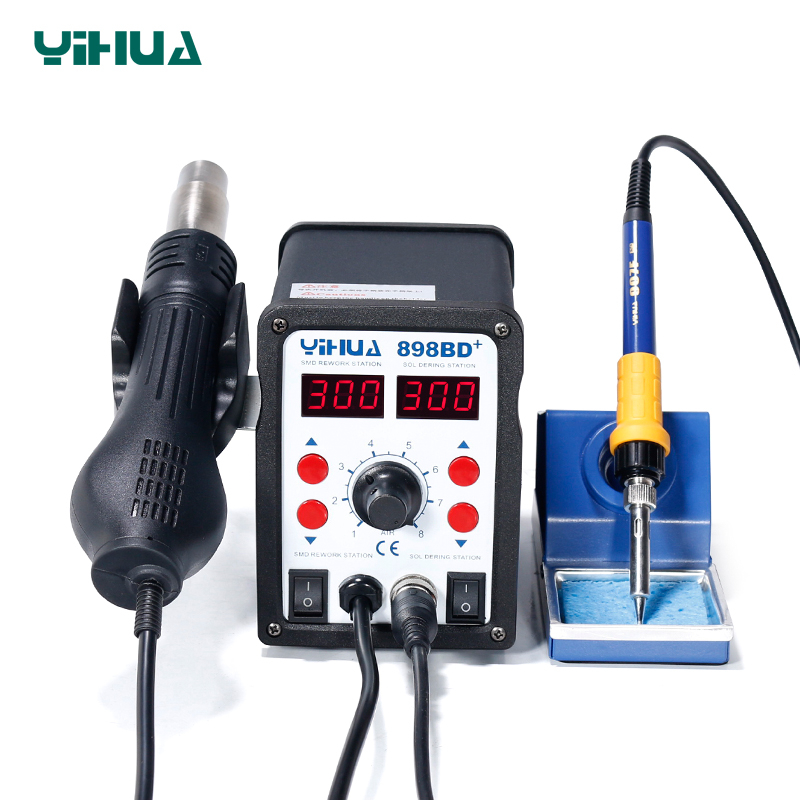

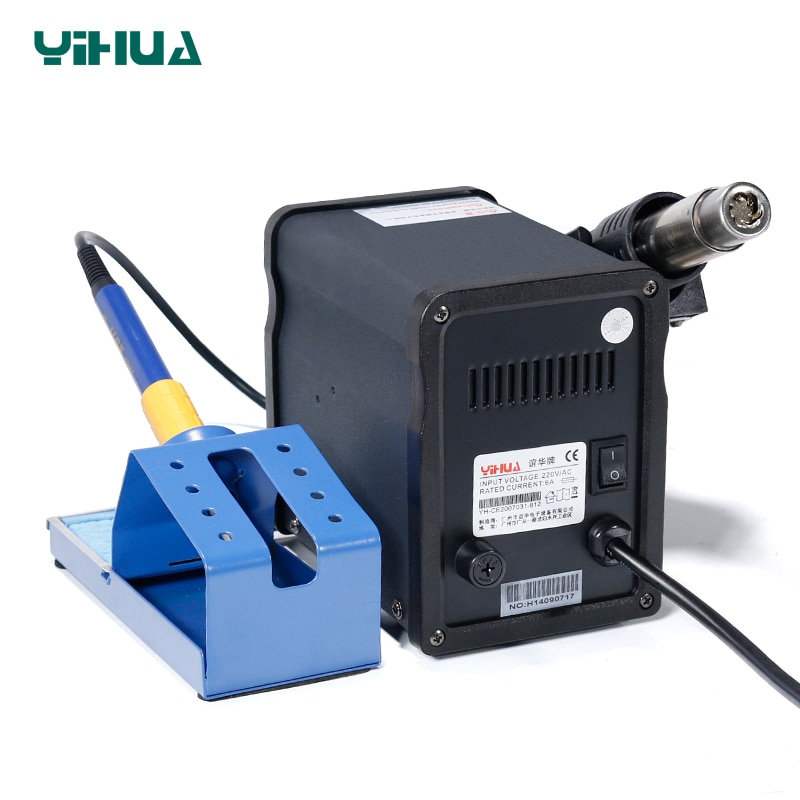

Výkonná plne digitalizovaná ventilátorová horúcovzduná stanica WEP 898BD+ so 75W mikropájkou
YIHUA898BD+ Desoldering Hot Air Soldering Station 110 V With Iron Soldering Welding Station For Repair
Characteristic
1.4 keys to control gun and iron
2.use imported large power heater
We using biger transformer to increase power supply
Those model can show high precision the temperature,good for our highest requirement.
1. Comfortable portable handheld and the Digital LED display.
2. Microcomputer control,warming-up quickly.
3. Adjust the air flow and temperature control rotation.
4. Refer to the instructions included with three kinds of stainless steel
nozzles (big,medium and small) replacement part for Versatile Applications .
5. Would replace the part if the resistance value is incorrect.
6. When the temperature is less than 70C, can stop rotation automatically.
7. Intelligent system that could alarm , Fault detection automatically.
8. This product is ESD-protected.
9. High-quality resistance good for long service life
10. Shell using alloy material, elegant appearance.
11. Safe solder QFP, PLCC, BGA and other temperature-sensitive components.Also for Heating Shrink,
Viscidity Removal, Lacquer Removal, Preheating, Glue Soldering and Ice-Out.
12. Intelligent detection and cool airflow features.
13. Green lines and high-quality silicone body heat good for extend life and save power.
Display
Technical Data
|
Power consumption |
720W |
||
|
Gun temperature range |
100-480oC |
Soldering Iron Temperature range |
200-480oC |
|
Gun type |
Brushless fan Air flow 120L/MIN |
Soldering Iron type |
Blue handle |
|
Gun heater material |
NIckel-Alloys |
Soldering Iron heater material |
imported high-power heater |
|
Gun heater resistance |
74Ω |
Soldering Iron heater resistance |
3.5~4.1Ω |
|
Model NO. |
Inner box Dimension(cm) |
Outer box Dimension(cm) |
QTY |
Product weight |
|
YH-898BD+ |
26*16.5*14.8 |
54*35*31 |
8pcs |
3.1kg |
Remark
Specifications and design subject to change without notice
What's In The Box
* main unit + gun + power cord
* guide
* soldering iron
* soldering iron holder
* 3 nozzles
Hmotnos produktu:3.2 kg
|
|
