Horúcovzdušná stanica YIHUA 853D



Horúcovzdušná stanica YIHUA 853D je určená na použitie v elektronických servisoch, najmä opravy telefónov.

Stanica 3 v 1 - horúci vzduch, mikropájka, laboratórny zdroj. Zariadenia môžu pracovať samostatne ale aj súčasne.



Vlasnosti:

Stanica zobrazuje skutočnú teplotu horúceho vzduchu.
Stanica si pamätá poslednú nastavenú teplotu.
Presné nastavenie teploty vďaka výkonnému mikrokontroléru
Výkonné ventilátorové prevedenie

Kvalitné vyhrievacie teleso

Pohotovostný šetriaci režim

Stanica má prepracovaný systém úspory energie a hlavne predĺženia živnostnosti vyhrievacieho telesa.

V stojane horúcovzdušnej rukoväti je umiestnený spínač, ktorý po jej odložení ju automaticky ochladzuje, až kým stanicca neprejde do pohovostného režimu. Následne po zdvihnutí rukoväte zo stojana, stanica opäť naštartuje.

Horúcovzdušná stanica WEP 853D je vybavená:

Horúcim vzduchom
Mikropájkou s výkonom 50W
Laboratórnym zdrojom 0-15V, max 1A
Voltmetrom

Horúci vzduch:

Nastavenie teploty horúceho vzduchu 100-480 [° C]
Teplotná stabilita +/- 1 ° C
LED displej
Nastavte teplotu pomocou tlačidiel.
prietok vzduchu 120 litrov / min [max]
Plynulá regulácia prietoku vzduchu pomocou gombíka

Mikropájka:

Nastavenie teploty hrotu od 200-480 [° C]
Teplotná stabilita +/- 2 ° C
Napätie zem <2mV
Odpor Krajina <2ohms
Výkon: 50W

Laboratórny zdroj

Výstupné napätie DC: 0V - 15V
Maximálny prúd až 1A
Digitálny displej LED

Čo je obsahom:

Spájkovacia stanica WEP 853D
Stojan mikropájky s čistiacou hubkou
Napájací kábel
Mikropájka 907A s hrotom T-B
Dýzy:
guľatá tryska s priemerom 7 mm
guľatá tryska s priemerom 9 mm
guľatá tryska s priemerom 4,4 mm
štvorec 12x12 mm
Drôty pre zásobovanie / meter
Plastový zdvihák na súčiastky





YIHUA853D 1A  rework station





Patented products, counterfeiting not allowed
Patent No. 2011300160506



Main function



1). The product uses double-sided fiberglass circuit board material, the components installation processes are performed orderly to ensure the clarity of electric signal flow.
 2). The Soldering station, Hot air rework‘s temperature are using Intelligent Fuzzy logic PID control, therefore the temperature steady-state drift is relatively small, it overcomes the drift quite quickly even in a harsh environment.
 3). Fan's airflow capacity, Soldering Iron and Hot air rework's temperature are all adjustable, the power supply  voltage is shown on the LED digital display, and it is constantly updated.
 4). Soldering iron, Hot air rework and dc power supply are using independent dual-core micro-controller, which means they can work independently, when the problem occurs on one tool it does not affect the others. Dual-core CPU is used to avoid failures.
 5). Hot air rework, soldering iron are equipped by variety of fault protection

 6). Product is simple in design, therefore it can operate without too many keys involved.

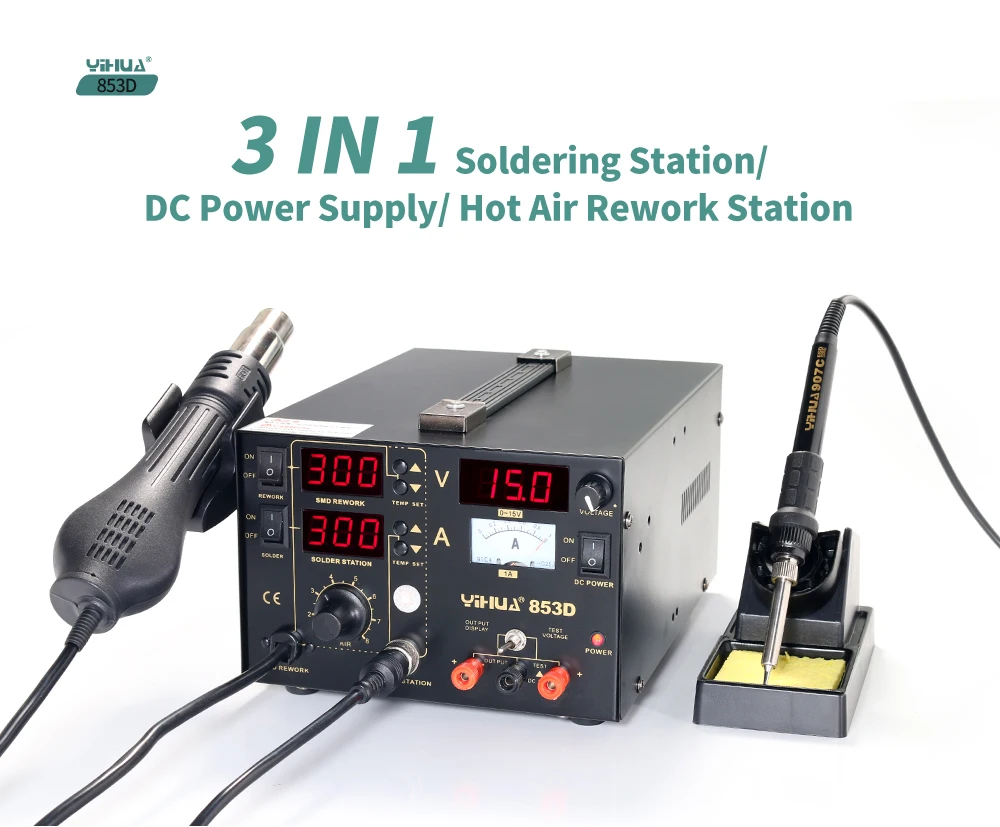

YIHUA 853D Soldering  Iron Station With Hot Air Gun Rework Station DC Power Supply 3 In 1 Soldering Tool

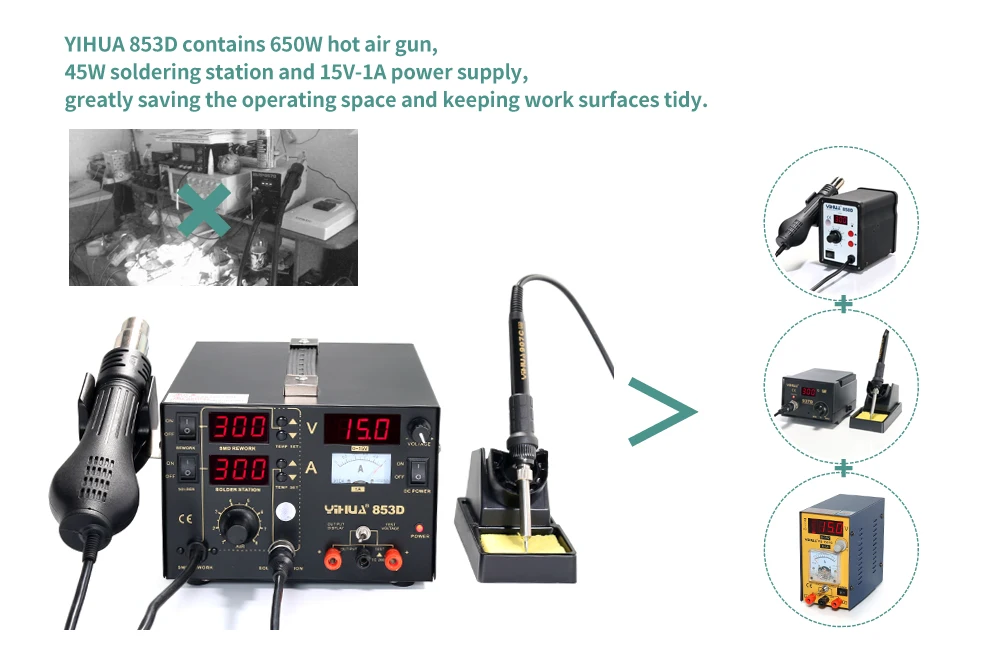

YIHUA 853D contains 650W hot air gun, 45W soldering station and 15V-1A power supply, greatly saving the operating space and keeping work surfaces tidy.





Purchase YIHUHA 853D, followed premium package as a gift.



Heating Element for Hot Air Gun *1;

45W Metal Heating Element for Soldering Iron  *1;

Mobile Phone Repair Testleadset Cable  *1;

50g Solder Wire *1;

Nozzles *4 / IC Extractor tool*1;

Soldering Iron Tips *5;

Solder wick *1.



Product Parameters

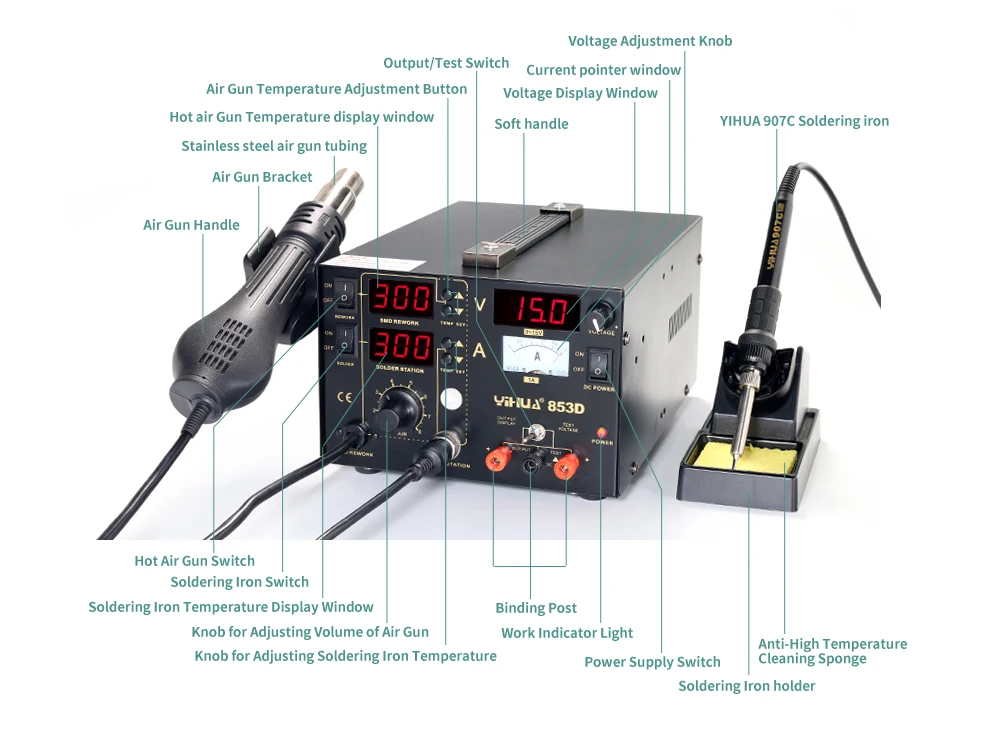

Panel  Dispaly

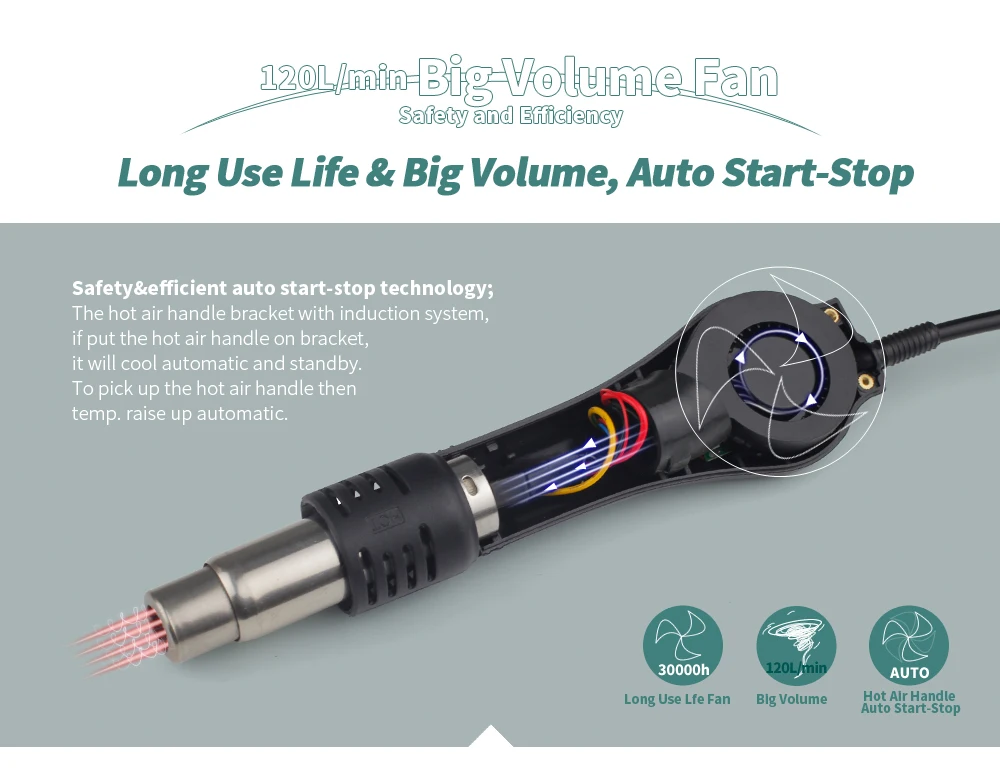

120L/min big volume fan safety and efficiency



Long use life & big volume, auto start-stop



The hot air handle bracket with induction system,if put the hot air handle on bracket,it will cool automatic and standby.To pick up the hot air handle then temp raise up automatic.

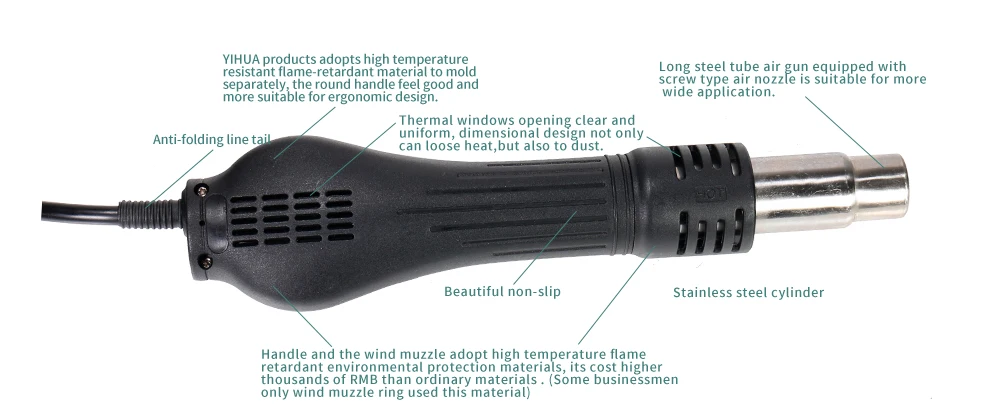

Our Hot Air Handle



YIHUA products adopts high temperature resistant flame-retardant material to mold separately, the round handle feel good and more suitable for ergonomic design.

Anti-folding line tail and thermal windows opening clear and uniform, dimensional design not only can loose heat,but also to dust.

YIHUA hot air handle cylinder for the card-point design,scientific and rational, solid easy to use.

Our handle and the wind muzzle adopt high temperature flame retardant environmental protection materials, its cost higher thousands of RMB than ordinary materials .

(Some businessmen only wind muzzle ring used this material)

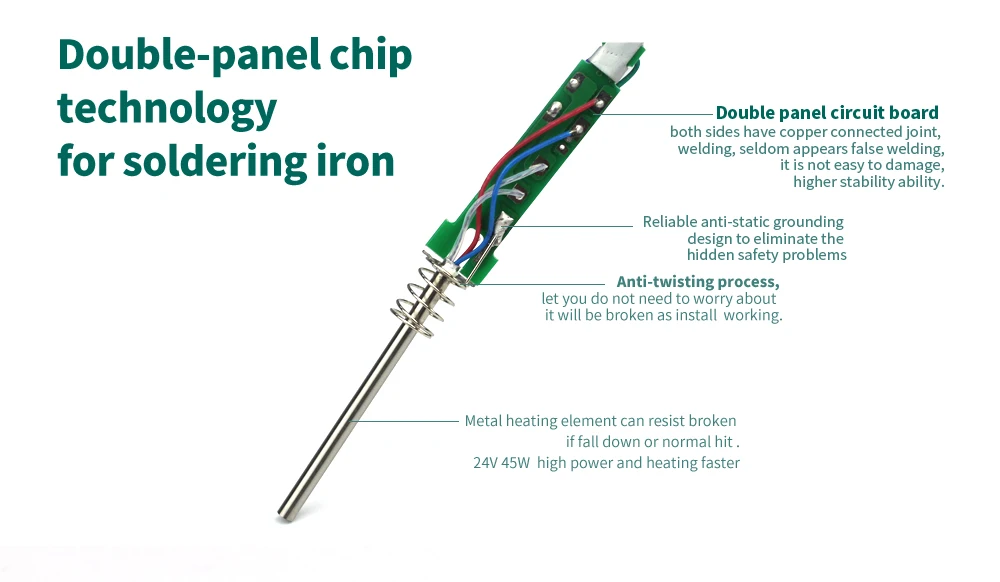

Double-panel chip technology for soldering iron





1.Double panel circuit board.

Both sides have copper connected joint,welding,seldom appreas false welding.It's not easy to be damaged,higher stability ability.



2.Reliable anti-static grounding design to eliminate the hidden safety problems.



3.Anti-twisting process.

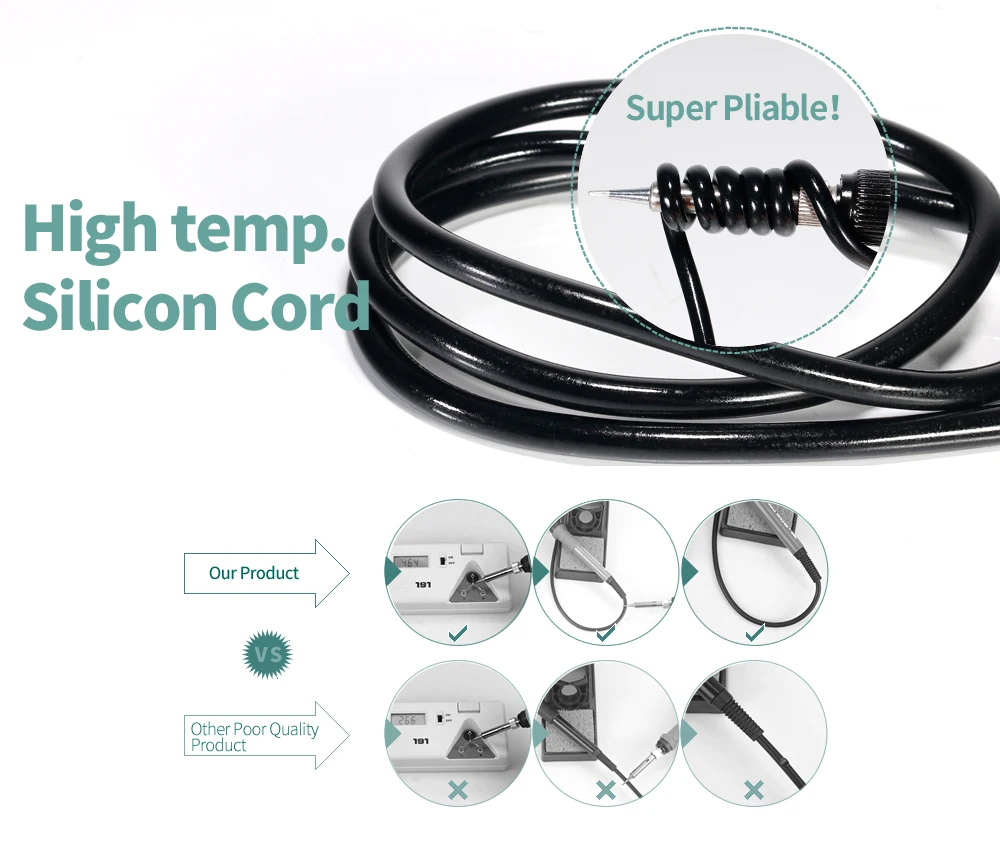

High temperature silicon cord

Hmotnosť produktu:4.5 kg
