Horúcovzdušná stanica YIHUA 995D

Horúcovzdušná stanica
Typ	stolná
Výkon teplovzdušnej špirály	700 W
Ovládanie teploty vzduchu	digitálny (tlačidla)
Ukazovateľ teploty horúceho vzduchu	digitálny (displej)
Rozsah regulácie teploty horúceho vzduchu	100 - 480 °C
Stabilizácia teploty	meraním výstupnej teploty
Typ generátoru fúkaného vzduchu	turbína
Prietok vzduchu (regulovateľný)	7 - 60 l/min
Ovládanie prietoku vzduchu	analógový (potenciometrom)
Ukazovateľ prietoku vzduchu	digitálny (displej)
Funkcia predĺženia životnosti špirály horúceho vzduchu	áno
Mikrospájka	áno
Desolder	nie
Odsávanie splodín od hrotu mikrospájky	nie
Vákuová pinzeta	nie
Predohrev	nie
Laboratórny zdroj	nie
Hmotnosť stanice [kg]	3 kg
Hmotnosť ručnej časti [g]	180 g
Napájacie napätie	230V/50Hz
Rozmery (šírka - výška - hĺbka) [mm]	100-138-158 mm
Mikropájka
Výkon	75 W
Ovládanie teploty	digitálny (tlačidla)
Ukazovateľ teploty	digitálny (displej)
Rozsah regulácie teploty	200 - 480 °C
Funkcia predĺženia životnosti hrotu	áno
Odpor hrotu proti uzemneniu	< 2 Ω
Potenciál hrotu proti uzemneniu	< 2 mV
Pracovné napätie pre ohrev hrotu	24 V
Výmenné hroty (typ)	klasický rad 900-T
Typ spájkovacieho pera	YIHUA 907L
Hmotnosť balenia [kg]:	2.9 kg

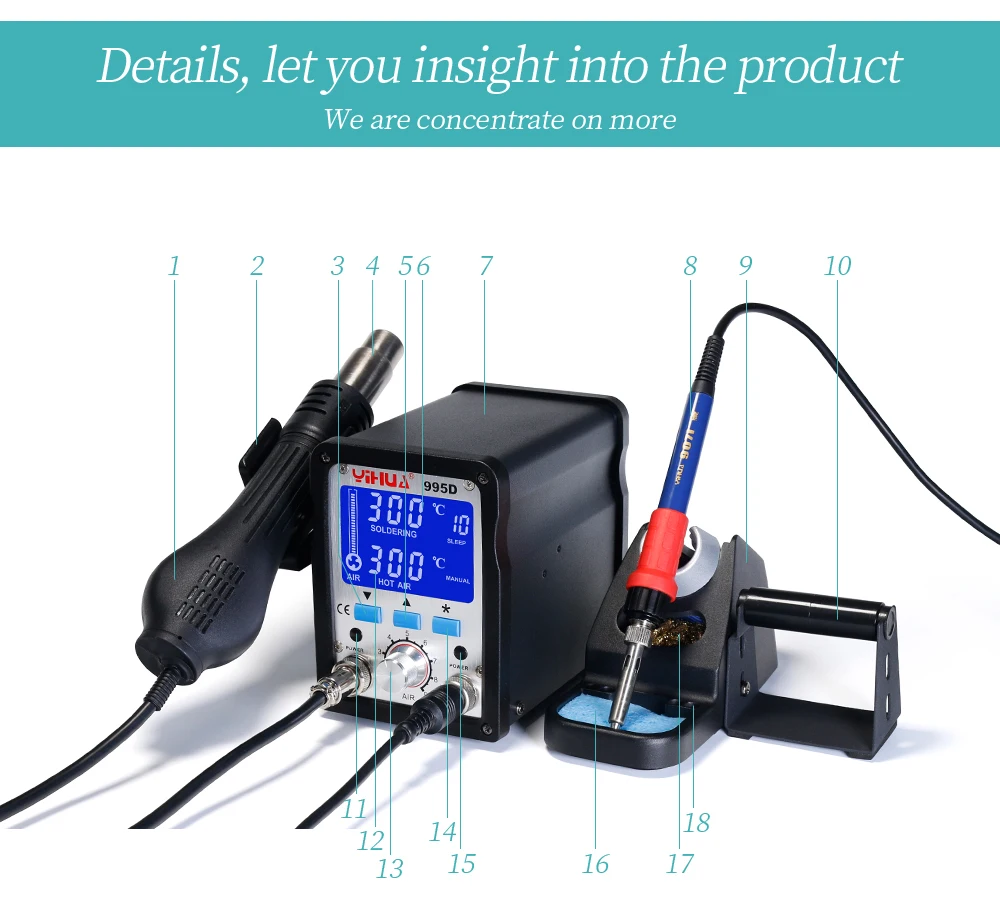

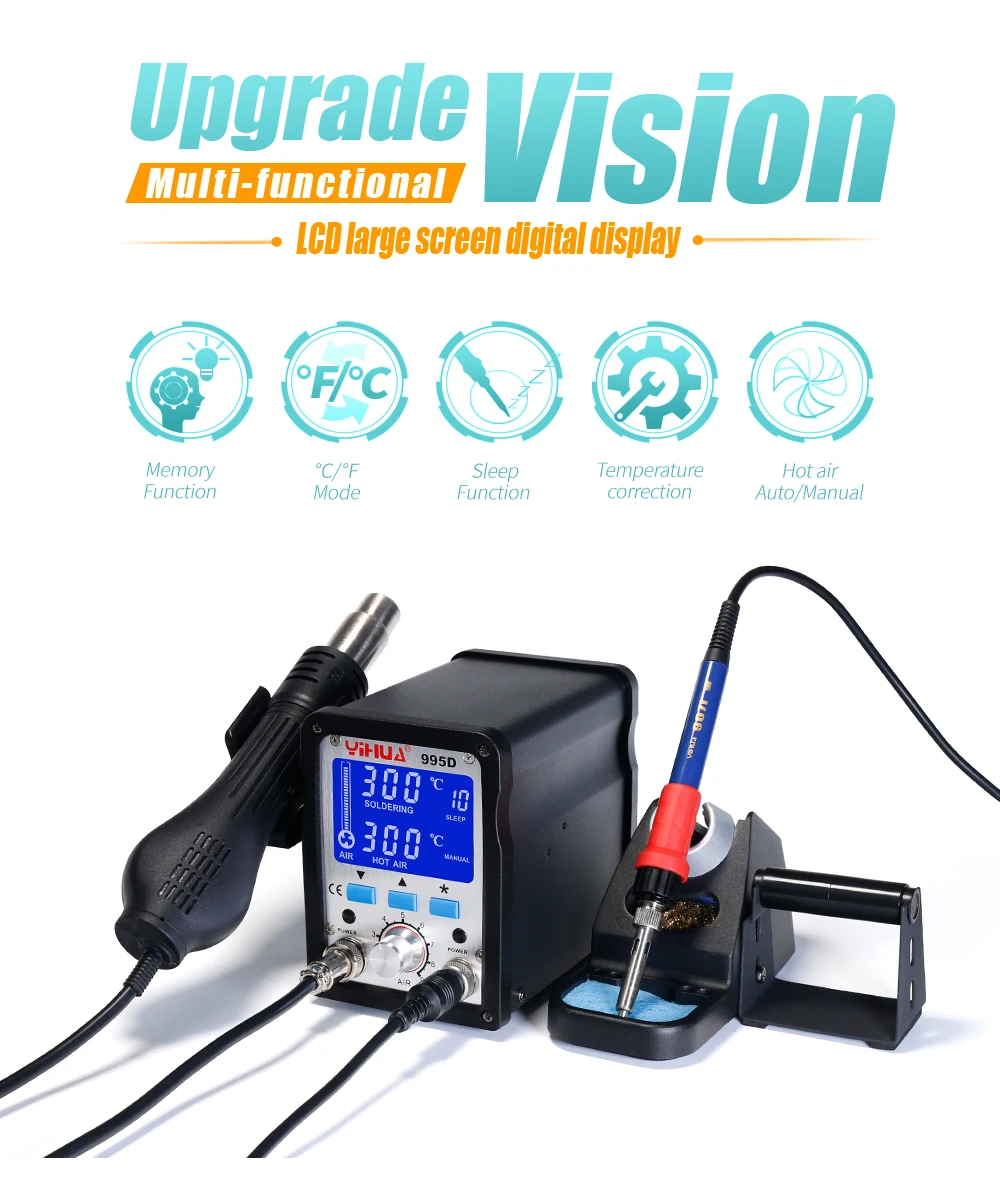

YIHUA 995D Upgrade Vision Hot Air Gun Soldering Station With Imported Soldering Iron 2 in 1 Rework Station For Phone Repair Tool



-- 3 memory storage;

-- C/ F temperature display mode;

-- Iron sleep function;

-- Temperature correction;

-- Hot air gun auto / manual mode.

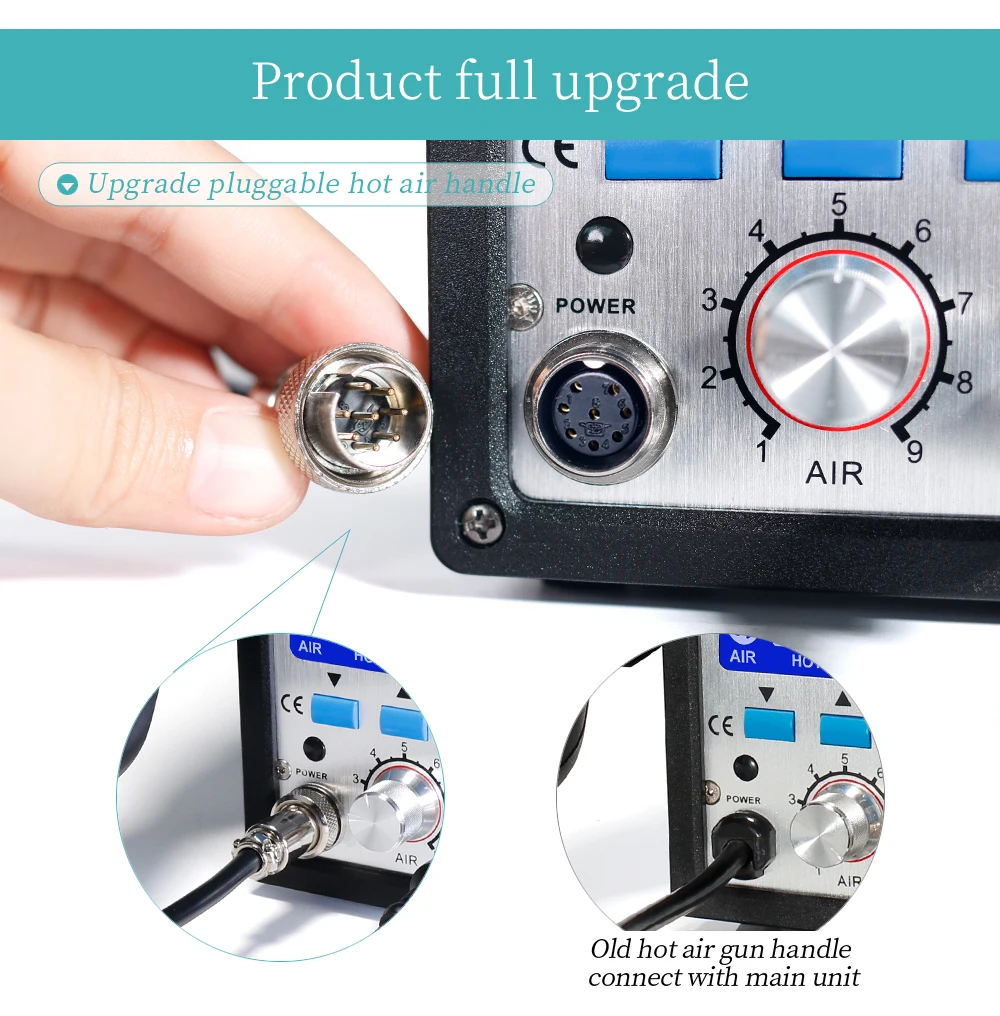

Upgrade vision hot air gun handle

We adopt pluggable hot air gun handle,easy to replce and install than old one.



Upgrade vision iron stand



We add IRON TIPS SLOT and HANGING TIN HOLDER,user-friendly design, the appearance of more high-end atmosphere.

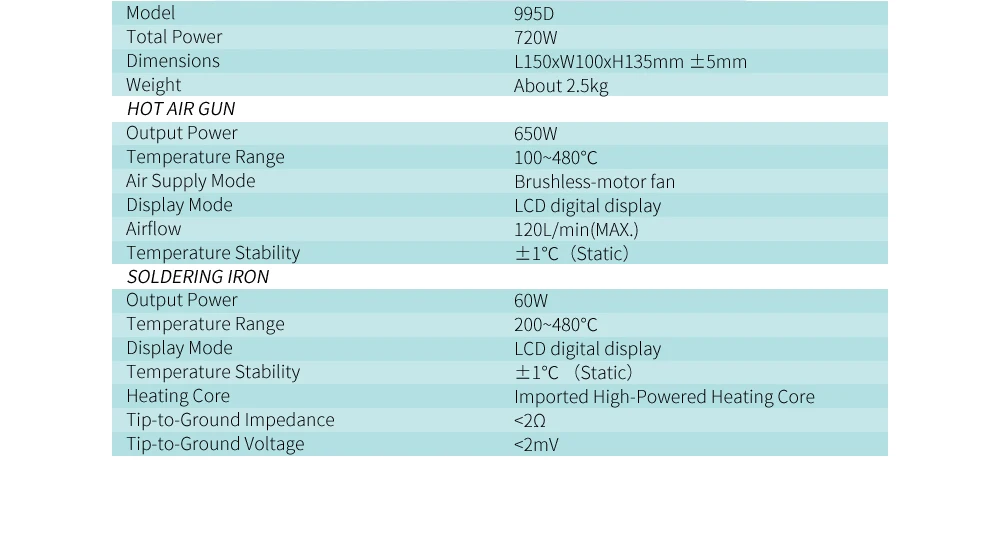

Technical Data

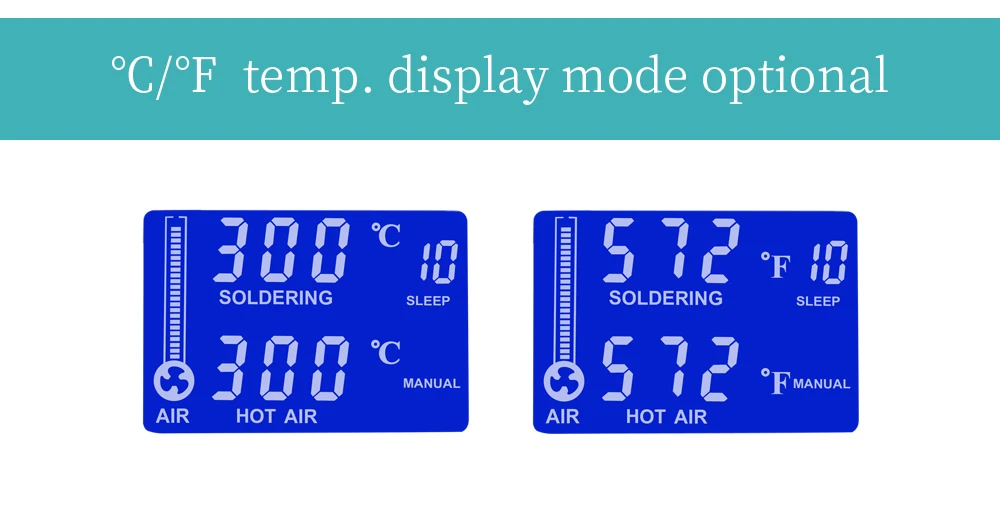

Fahrenheit and Celsius Mode

It is designed for suitable for different regions of the temperature display needs,switch simple and convenient.

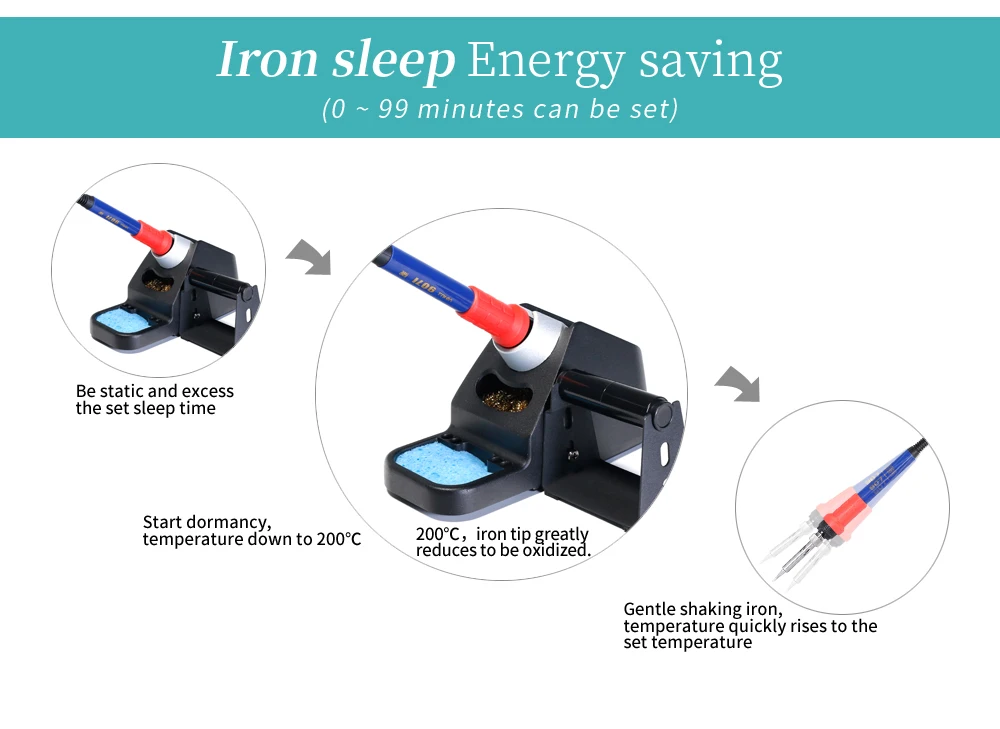

Iron Sleep Function (Available for Setting 0-99 Minutes)

Schematic Diagram of Intelligent Dormancy

1.Be static and excess the set sleep time;

2.Start dormancy, temperature down to 200℃;

3.When it reached 200℃，iron tip greatly reduces to be oxidized;

4.Gentle shaking iron, temperature quickly rises to the set temperature.



Automatic Mode

Pick up the gun and the temperature rises into the working state;Putting down the handle, the temperature cools down and the gun enters the dormant standby state;

The automatic function of the air gun is suitable for the working condition of the infrequent use of the air gun, saving energy and reducing the loss of the heating element of the wind gun.

Manual Mode

The hot air gun has kept working.The manual function of the air gun is suitable for the working condition of the frequent use of the gun.It can Save the time of the temperature of heating and cooling,so improve work efficiency.



Temperature Calibration Function ( ±50℃ )





Only 4 Steps to correct soldering iron temperature



Step 1



When the temperature up to set value,press the * and iron switch for 2 seconds;



Step 2



Detection temperature;



Step 3



Input the real temperature via temperature adjustable button;



Step 4



press * is ok



Note:If correct the hot air temperature,please press hot air switch,other steps as soldering iron.

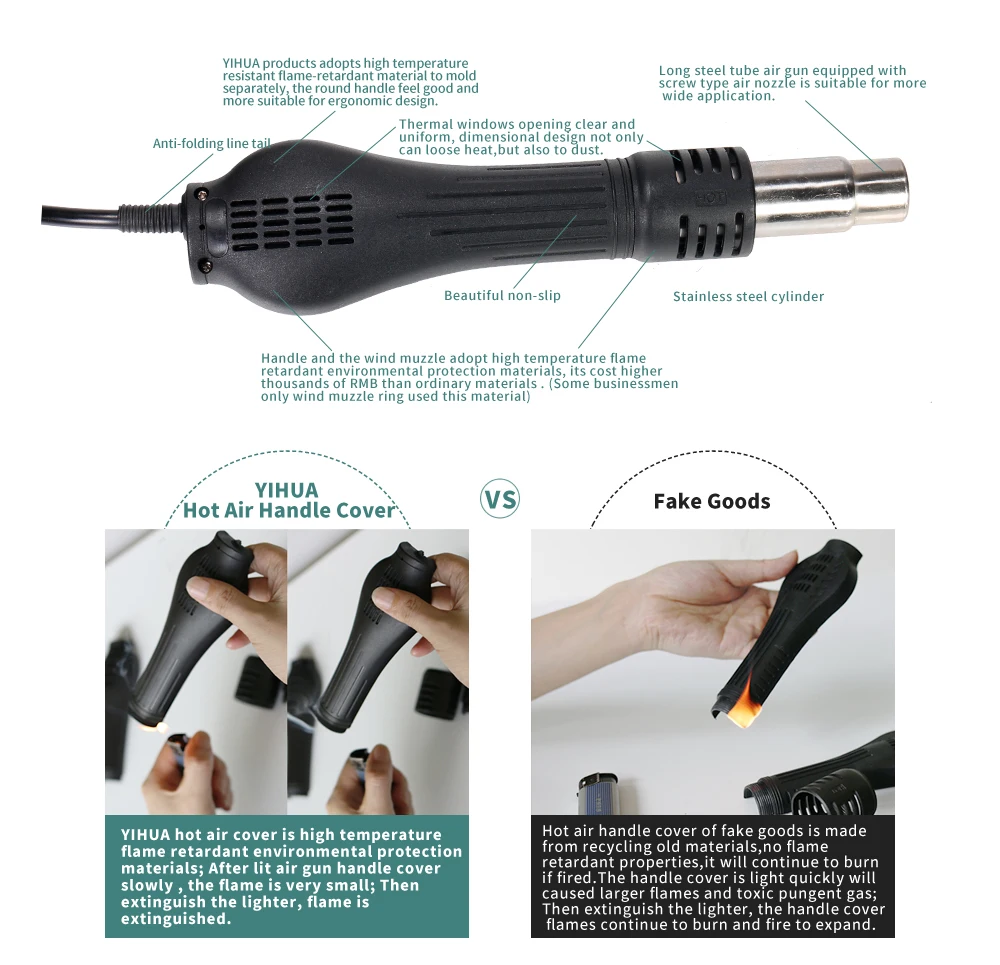

Patent Technology of Our hot air gun handle





Long life&big volume fan in hot air handle



The hot air handle bracket with induction system,if put the hot air handle on bracket,it will cool automatic and standby.To pick up the hot air handle then temp raise up automatic.



YIHUA products adopts high temperature resistant flame-retardant material to mold separately, the round handle feel good and more suitable for ergonomic design.

Anti-folding line tail and thermal windows opening clear and uniform, dimensional design not only can loose heat,but also to dust.

YIHUA long steel tube air gun equiped with screw type air nozzle,it's suitabl for wide application.

Our handle and the wind muzzle adopt high temperature flame retardant environmental protection materials, its cost higher thousands of RMB than ordinary materials .

(Some businessmen only wind muzzle ring used this material)

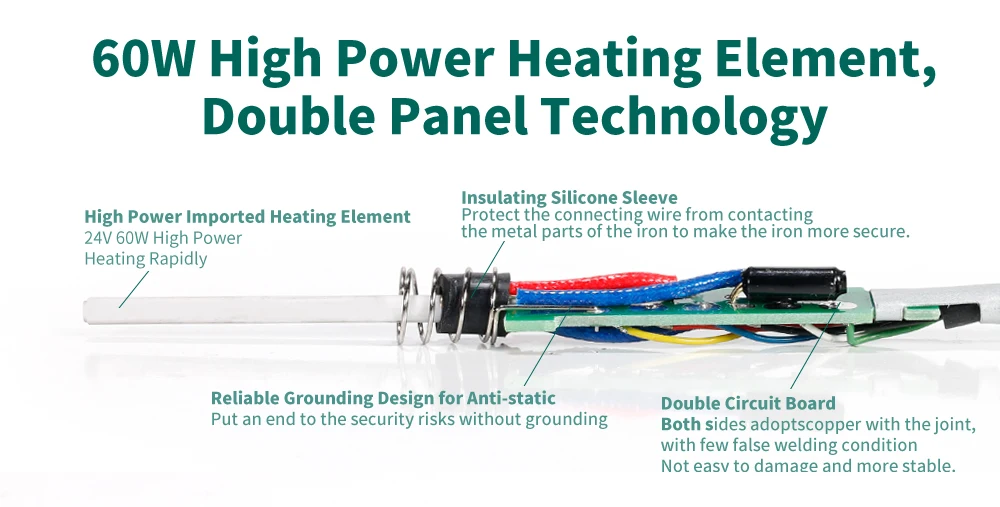

High power iron heating element



1.Double panel circuit board

Both sides have copper connected joint,welding,seldom appreas false welding.It's not easy to be damaged,higher stability ability.

2.Reliable anti-static grounding design to eliminate the hidden safety problems.

3.Insulating silicone sleeve to protect the connecting wire from contacting the metal parts of the iron to make iron more secure.

4.High power 60W imported heating element,heating faster than small power soldering iron.

We always adopt high tempeature silicon cord for soldering iron handle,super pliable!



Hmotnosť produktu:4 kg
